Measuring pumping filtration modules- MPFM

The Measuring Pumping Filtration Modules (MPFM) is the key element of downstream oil logistics for diesel, kerosene, gasoline or avgas. On a secondary or advanced oil depot, civil or military, it allows to gather in a single equipment the devices required for :

    • The unloading,
    • Loading (dome or source),
    • Microfiltration of particles (up to 10 microns),
    • The separation of water from the product,
    • The degassing of the fuel before its counting,

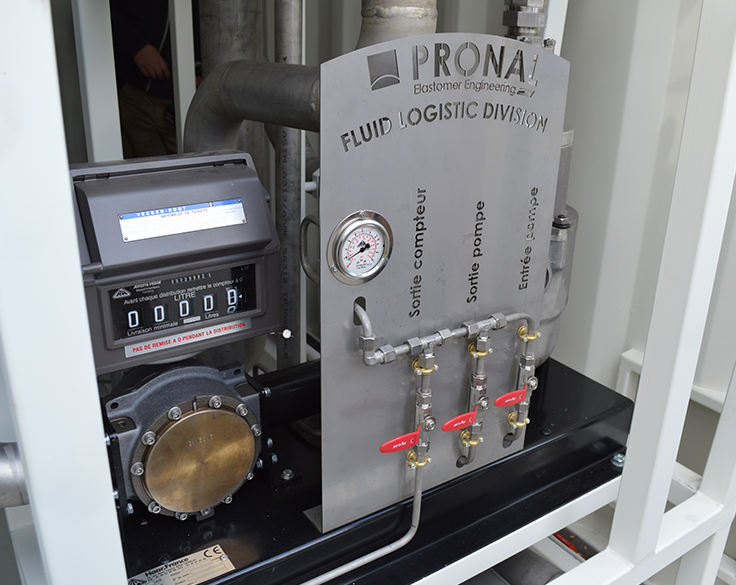

    • Metering of the delivered or received fuel.

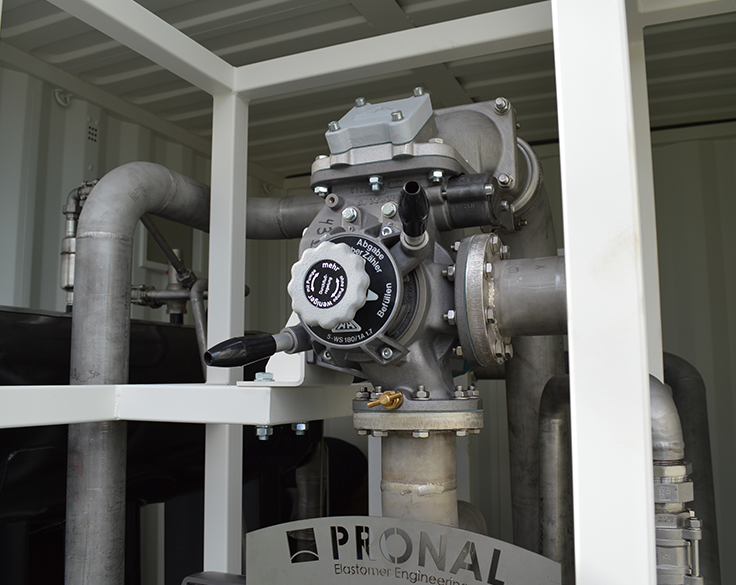

With an effective flow rate ranging from 200 lpm to 1000 lpm, the use of microfiltration allows the product to be stored at the time of unloading without having to spend a temporary storage in a reception tank. Thus, the management is easier and the immobilization time of the trucks is minimized. The changeover from unloading to loading mode is centralized in a mechanical 5-way valve. A single operation is sufficient to switch from one position to the other.

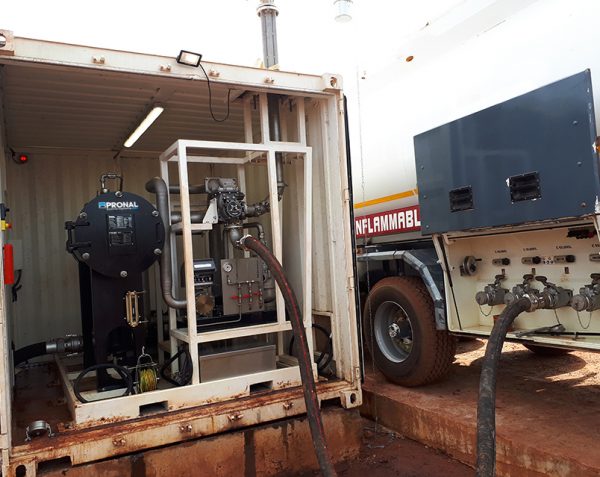

The measuring pumping filtration modules can be installed on a covered or screened skid. It can also be installed in a container or on a trailer, depending on the modularity and mobility required. Integrated in an ISO 20′ maritime container, its small size allows the construction of a pumping cabin or a technical room on the other side of the container. Other pumping systems exist, such as the motor pump, pump on chassis.

Avantages

Use

  • Compartmentalized ISO 20″ maritime container equipped to perform as a pump operator’s cabin/office
  • Simple design
  • Connects to any type of tank

Safety

  • Installed on a retention tank
  • Equipped with an emergency stop and a full complement of fire protection measures (extinguisher, signage…)

Handling

  • Commissioning time: 30 min
  • Can be supplied in a mesh frame
  • Equipped with a forklift pocket for easy removal from the container

Vous ne trouvez pas vos dimensions

Notre bureau d'études composé des meilleurs chefs de projets et de desssinateurs sauront imaginer et créer un produit sur-mesure spécialement pour vous et votre projet unique.

sur mesure

Accessoires

Loading arm
