RDF underwater lifting units
Underwater lifting units are designed for:
- securing loads,
- transporting loads on the surface

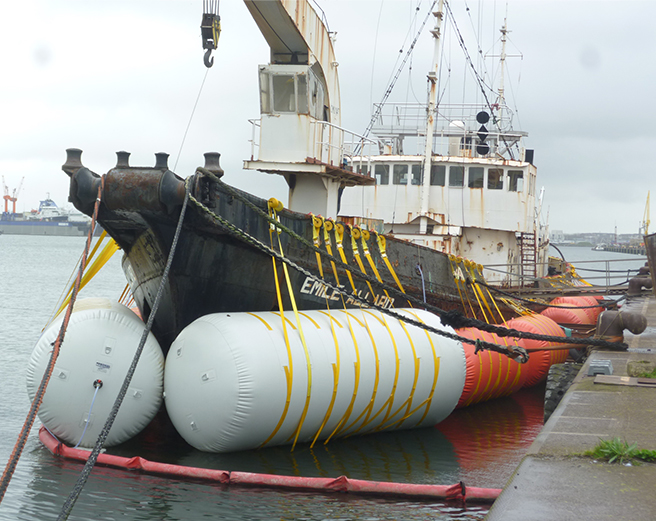

- or dismantling ships.
With the possibility of customized design and construction, they are able to meet the demands of a range of markets (offshore, nuclear…). Not only can they assist the buoyancy of an object or ship on the surface, but they can also be employed to easily raise and lower loads underwater.
Avantages
Reliability
- Lifting up to 8 tons
Safety
- Tensile strength of straps resists up to 10,000daN
Handling
- Equipped with inflation accessories
- Equipped with a rapid overpressure release valve
Informations détaillées
- Material: PVC / PU / or Nitrile coated fabric
- Technique: Assembled by high-frequency sealing,
- Dimensions: standard and tailor made,
- Inflation: by air,
- Max. lifting: 100 to 8000 kg,
- Temperature resistance:
- PVC coated fabric -20°C/+50°C,
- PU coated fabric -25°C / +100°C,
- Accessories:
- Inflation inlet with stopcock,
- Pressure release valve.
Informations techniques
| Ref. | Load (Kg) | Diameter (mm) | Length (mm) | Height (mm) | Bar weight (kg) | Total weight (kg) | No. of straps |
|---|---|---|---|---|---|---|---|
| RDF 1000 | 1000 | 1050 | 1500 | 525 | 10 | 25 | 2 |
| RDF 3000 | 3000 | 1250 | 2900 | 625 | 45 | 73 | 4 |
| RDF 5000 | 5000 | 1500 | 2900 | 750 | 50 | 86 | 5 |
| RDF 8000 | 8000 | 1890 | 2900 | 945 | 70 | 130 | 5 |
Vous ne trouvez pas vos dimensions
Notre bureau d'études composé des meilleurs chefs de projets et de desssinateurs sauront imaginer et créer un produit sur-mesure spécialement pour vous et votre projet unique.
sur mesure
Composition / Conseils
Care during use
Lay a mat on the floor underneath the RDF before unfolding. Unfold the RDF. Check the complete surface of the skin, the straps, accessories, and the correct operation of the valve.
Maintenance tips
After use, clean the outside of the product with soapy water, rinse and dry. Never use a detergent or aggressive product.
Storage advice
Store away from light, damp and temperature variations, in its original case.
Normes / réglementations
Guaranty
1 year against all manufacturing defects
Standards
