Inflatable formwork- JB Qualifix®

The JB QUALIFIX® is an inflatable manhole formwork. It is an alternative to heavy wooden or metal formwork. This solution is used for sealing cylindrical manholes. Compared to standard formwork, it saves up to 5 hours of work on the site. In addition, its perfect watertightness protects the manhole chamber from possible residues that could fall into it during concreting. Thus, the workers do no longer have to go down to clean it.

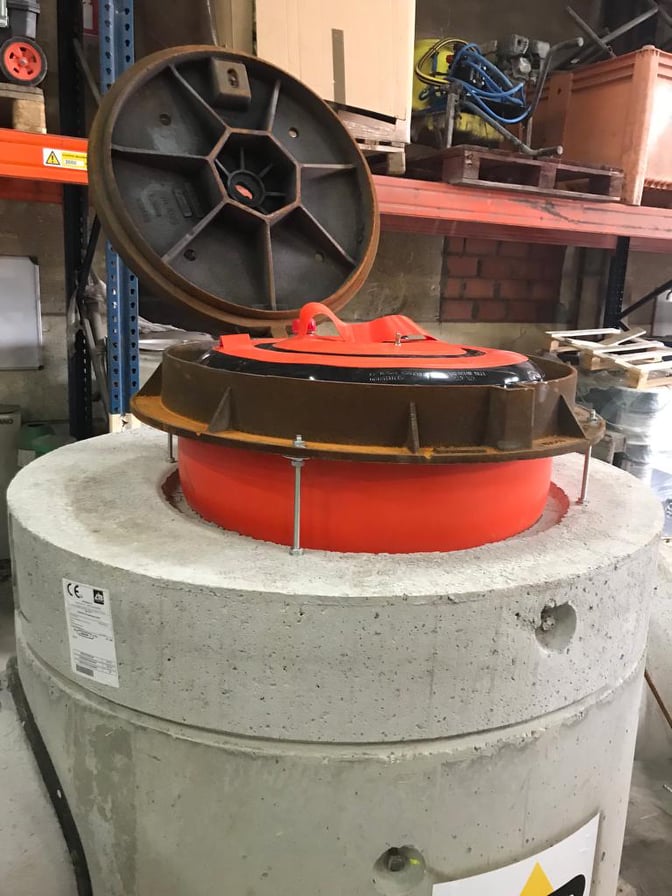

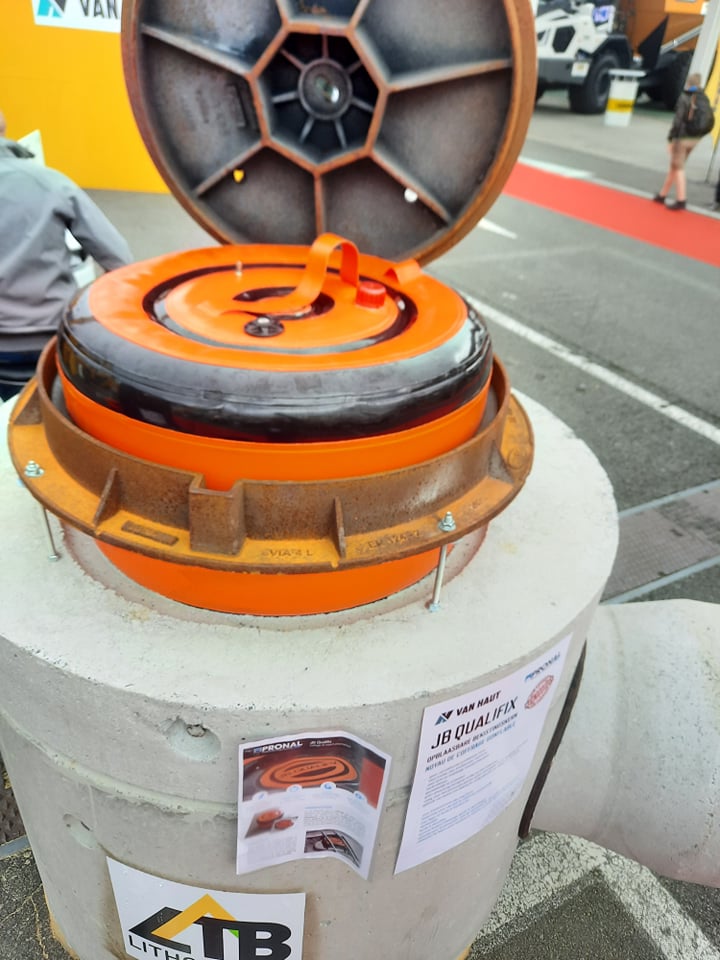

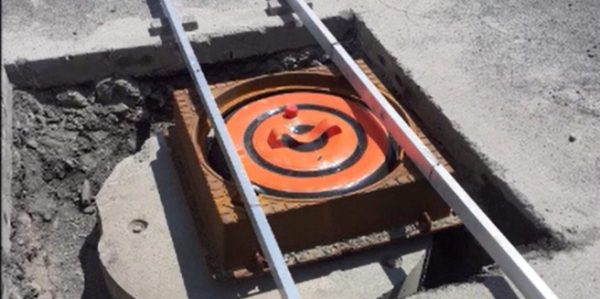

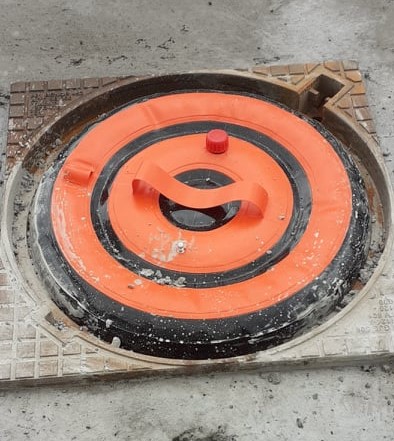

The JB QUALIFIX® acts like a standard manhole formwork. The operators slide the deflated tube into the manhole. Using a small compressor, they inflate it until the solution fits the entire wall for a perfect seal. Once inflated, the operators can pour the concrete all around, without dirtying the manhole. The use of this solution provides a better quality manhole seal that will last over time.

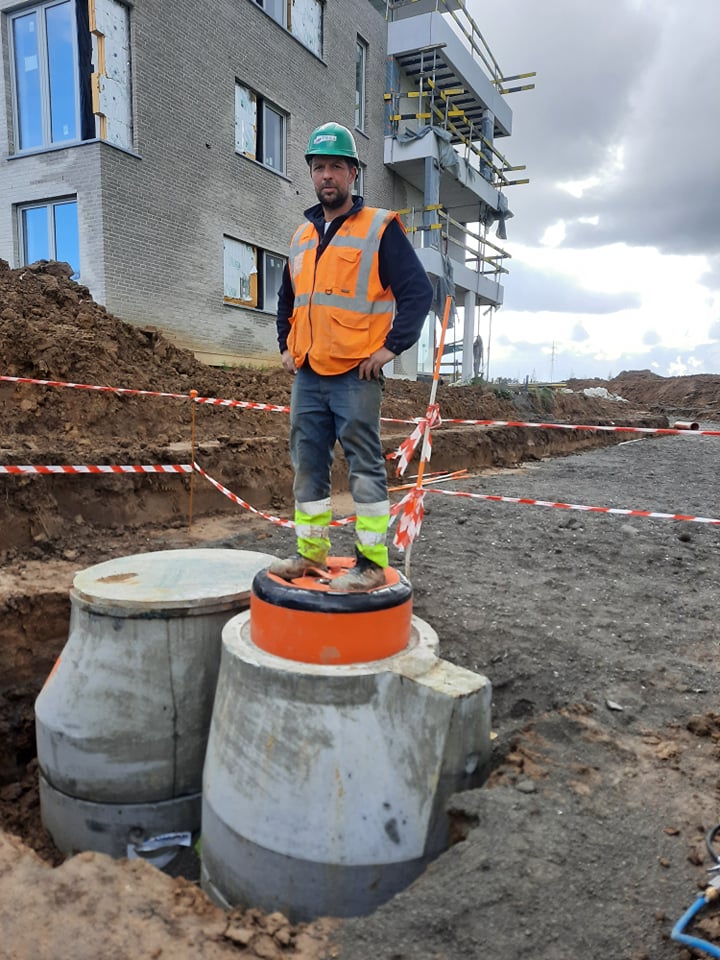

This product was imagined by Jonathan Bracco, an employee of the company TRBA. He thought of it in order to protect his teams as much as possible. Indeed, this inflatable formwork allows the prevention of the FME risk since it has the function to avoid any fall of operators or objects in the inspection chamber. Thus, the operators are protected during the whole duration of the manhole sealing.



Advantages

PRACTICAL

  • Simple and quick to use
  • Quick and easy to remove
  • Easy storage
  • Custom made or standard
  • Reusable
  • Lightweight

Efficiency

  • High resistance
  • Perfectly sealed

SECURE

  • FME risk prevention
  • Prevention of operator and object fall

Detailed information

  • Material: Polyurethane
  • Technique: High frequency welding
  • Pressure: 0,2 bar – safety pressure: 0,3 bar
  • Inflation: air
  • Dimensions: Standard: 600 to 700 mm diameter – Custom made possible
  • Accessories: small compressor, supply line

Technical informations

JBQ 400 JBQ 600 JBQ 650 JBQ 700 JBQ 800 JBQ 1000
Ø400 Ø600 Ø650 Ø700 Ø 800 Ø1000
Height 550mm Height 550mm Height 550mm Height 550mm Height 550mm Height 550mm

You can not find your dimensions

Our design department employs the best project leaders and designers and will be pleased to develop and create a tailor-made product specially for your unique project.

tailored

Composition / Advice

USING ADVICE
Avoid contact with sharp surfaces
INFLATION ADVICE
Safety valve triggers above 0.3 bar
MAINTENANCE ADVICE
Check for loss of pressure. Check the function of the valve.

Download

Fact Sheets / Business Guides
  • This field is for validation purposes and should be left unchanged.

Accessories

Supply line
Cover (option)
