Double pneumatic bottle gripper - MCB

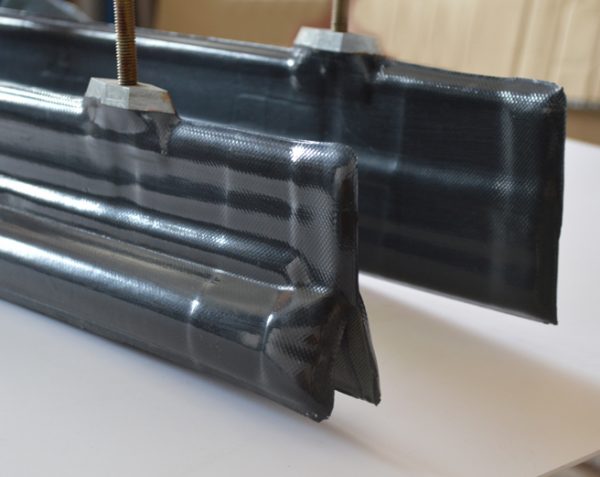

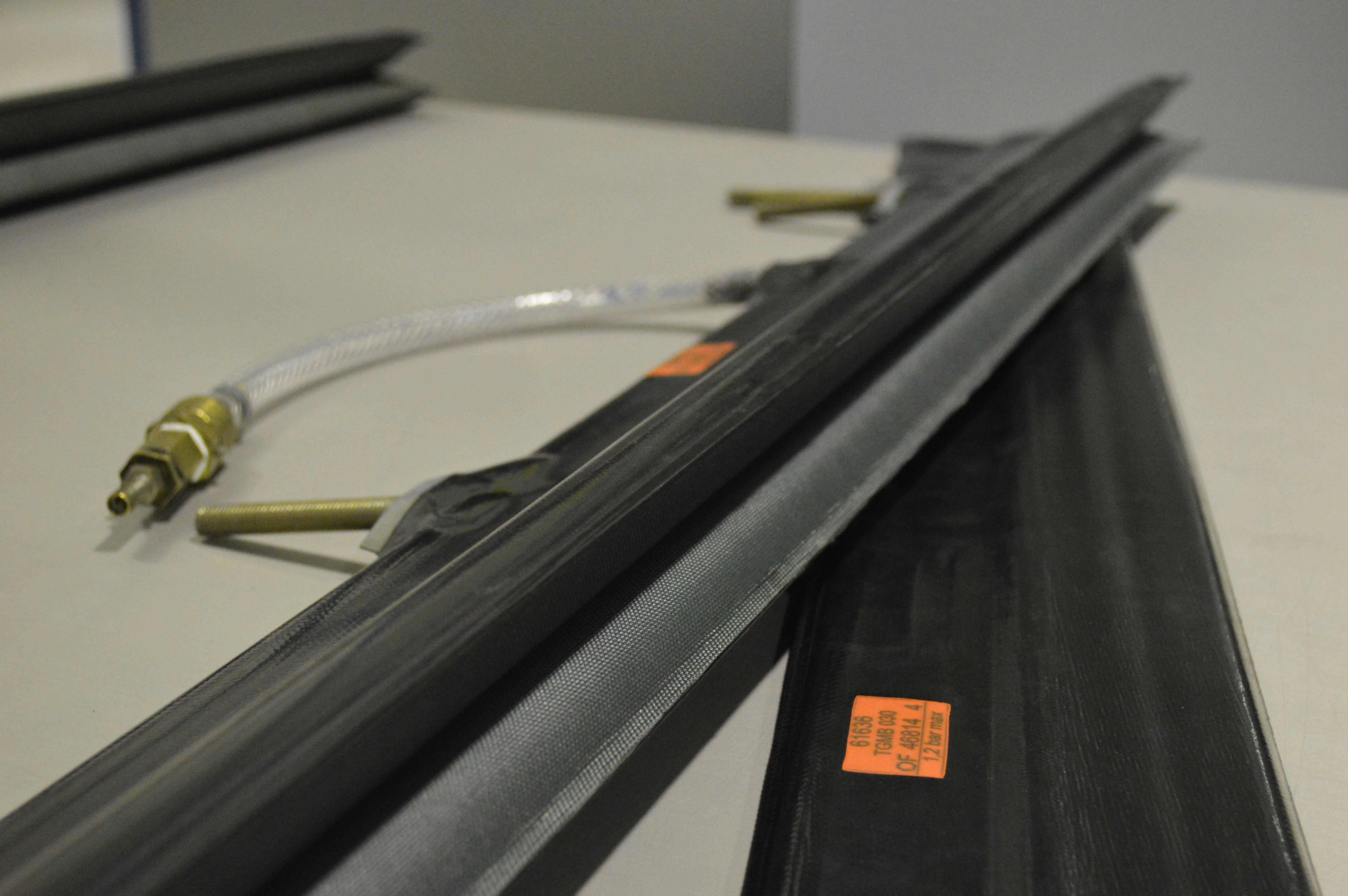

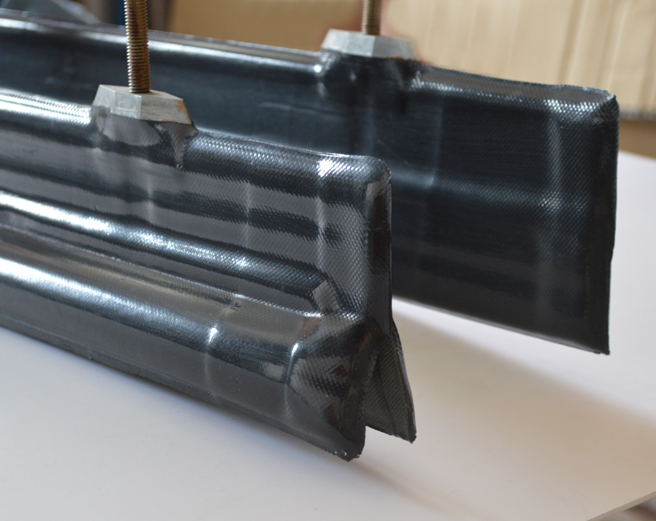

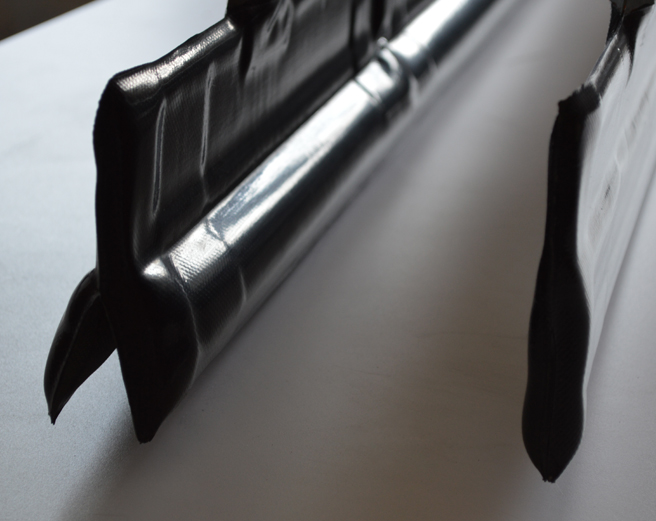

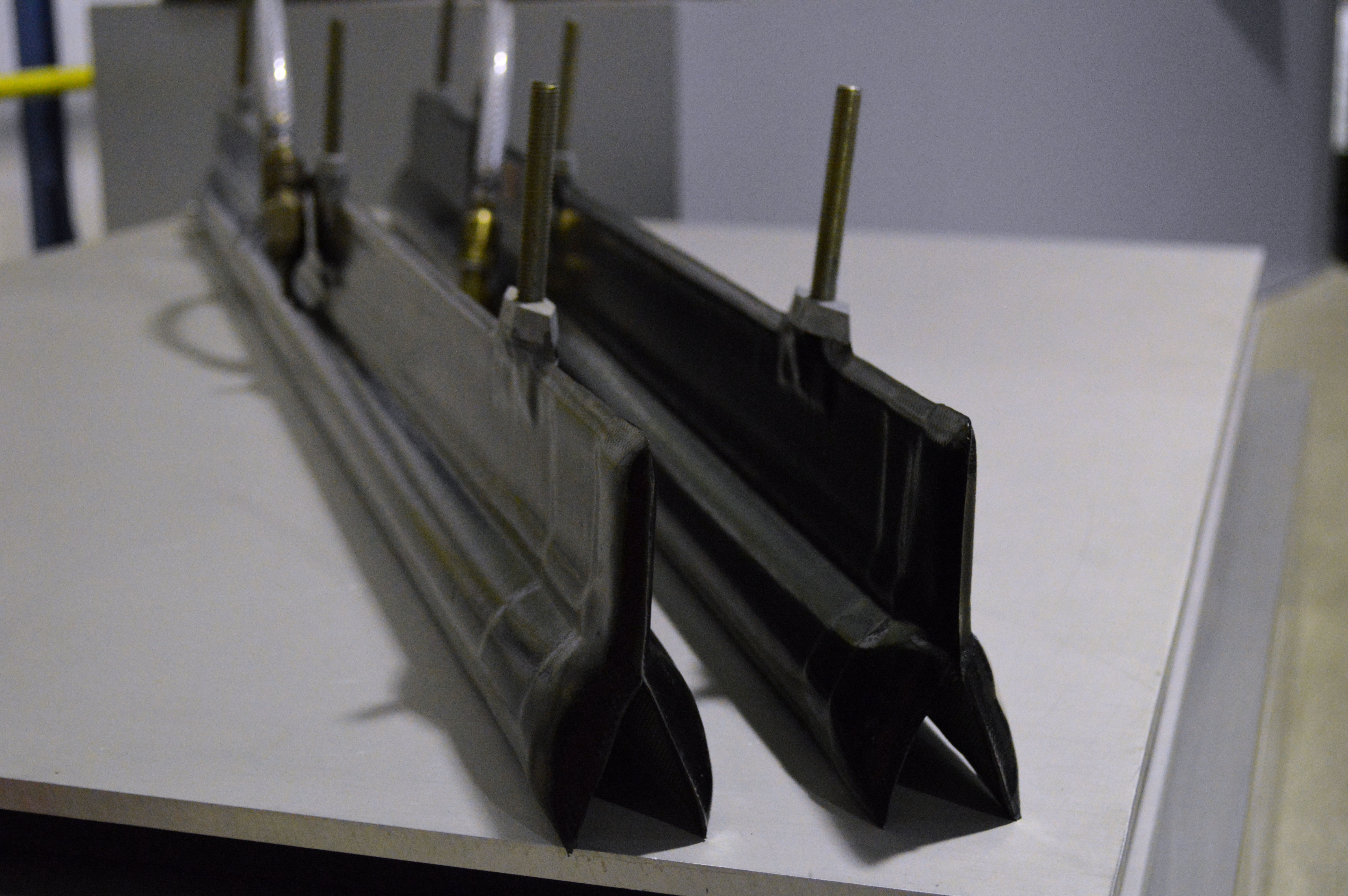

The MCB double pneumatic bottle gripper range is used for long or short neck bottles. Its dual-ring profile means that it can cover a wider range of diameters (12 to 45 mm). It is widely used to avoid changing grippers between two types of bottles. Indeed, only the spacing between the grippers need be changed.

Our range of pneumatic bottle grippers is manufactured in our workshops from NPVC coated fabric and assembled by hot vulcanization in autoclave

Two lengths are available as standard : 1320 mm and 1460 mm. Nevertheless, thanks to our design office, we can make custom-made products. For exemple, a food-safe coating can be added on request on the double pneumatic bottle gripper. In addition, depending on your requirements and your pallet loader heads, the inflatable rings will be adapted with reinforcing, a dual air supply, a threaded ring height, etc.

Avantages

Handy to use

  • Single air inlet
  • Fast inflation
  • Adaptable material

Efficiency

  • Thin empty thickness
  • Reduced size
  • Uniformly distributed thrust
  • Adapts to different bottle models

Reliability

  • No mechanical parts
  • No maintenance
  • Long service life

Informations détaillées

  • Material: NPVC coated fabric
  • Manufacturing technique: hot vulcanization in a vacuum autoclave
  • Standard lengths: 1320 and 1460 mm lengths
  • Min./Max. diameter: 12 to 45 mm
  • Inflation: air
  • Temperature resistance: up to 50°C
  • Max. inflation pressure: 1.2 bar
  • Thickness: 18 to 22 mm
  • Material options: food safe, cloth reinforcing, etc.

Informations techniques

Ref. Diameter (mm) Height (mm) Empty thickness (mm)
MCB 12 12 107 18
MCB 14 14 109 18
MCB 16 16 114 18
MCB 18 18 117 20
MCB 20 20 117 20
MCB 22 22 121 20
MCB 25 25 126 20
MCB 30 30 130 20
MCB 35 35 136 20
MCB 40 40 145 22
MCB 45 45 148 22

Vous ne trouvez pas vos dimensions

Notre bureau d'études composé des meilleurs chefs de projets et de desssinateurs sauront imaginer et créer un produit sur-mesure spécialement pour vous et votre projet unique.

sur mesure

Composition / Conseils

Care during use
Avoid any contact with surfaces that are too abrasive or have cutting edges. Carefully comply with the usage pressures stated on the product, refer to the installation manual.
Maintenance advice
there are no fixed maintenance intervals.
Storage advice
Store away from light, damp and temperature variations, in its original case.
Inflation advice
Service pressure is 1 bar max. 1.2 bar.

Normes / réglementations

Guarantee
1 year against all manufacturing defects

Téléchargement

Fiches techniques / guides métier
  • This field is for validation purposes and should be left unchanged.

Accessoires

Air supply (dual or single)
Threaded rod (70/55 mm high or other)
Food quality
reinforcing fabric
