Pneumatic tube gripper long neck - MC/ML
The standard MC/ML pneumatic tube gripper long neck range is dedicated to pallet loading long neck bottles like Bordeaux and Burgundy wines, or others. Many diameters are available to adapt to the bottle volume.

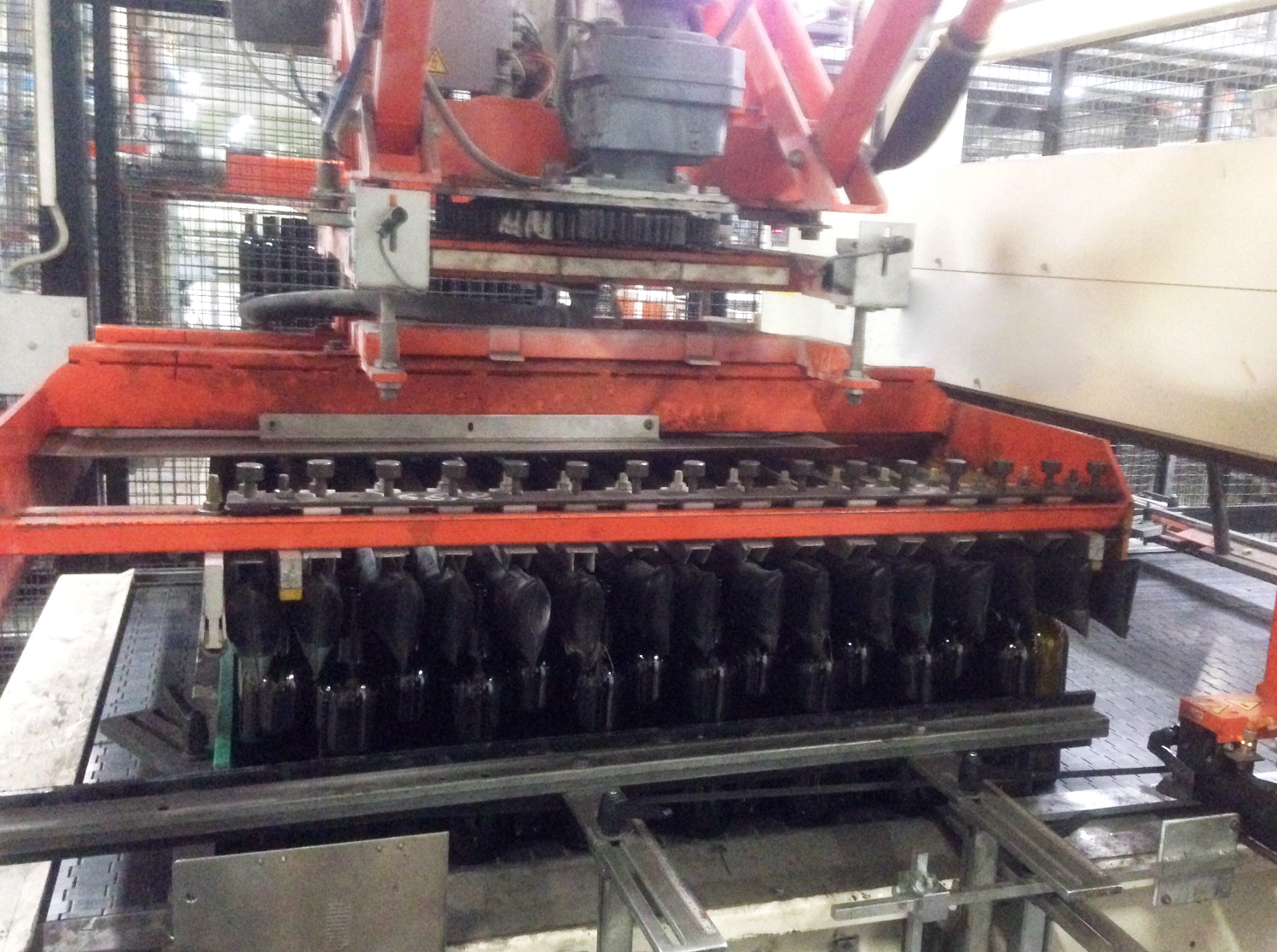

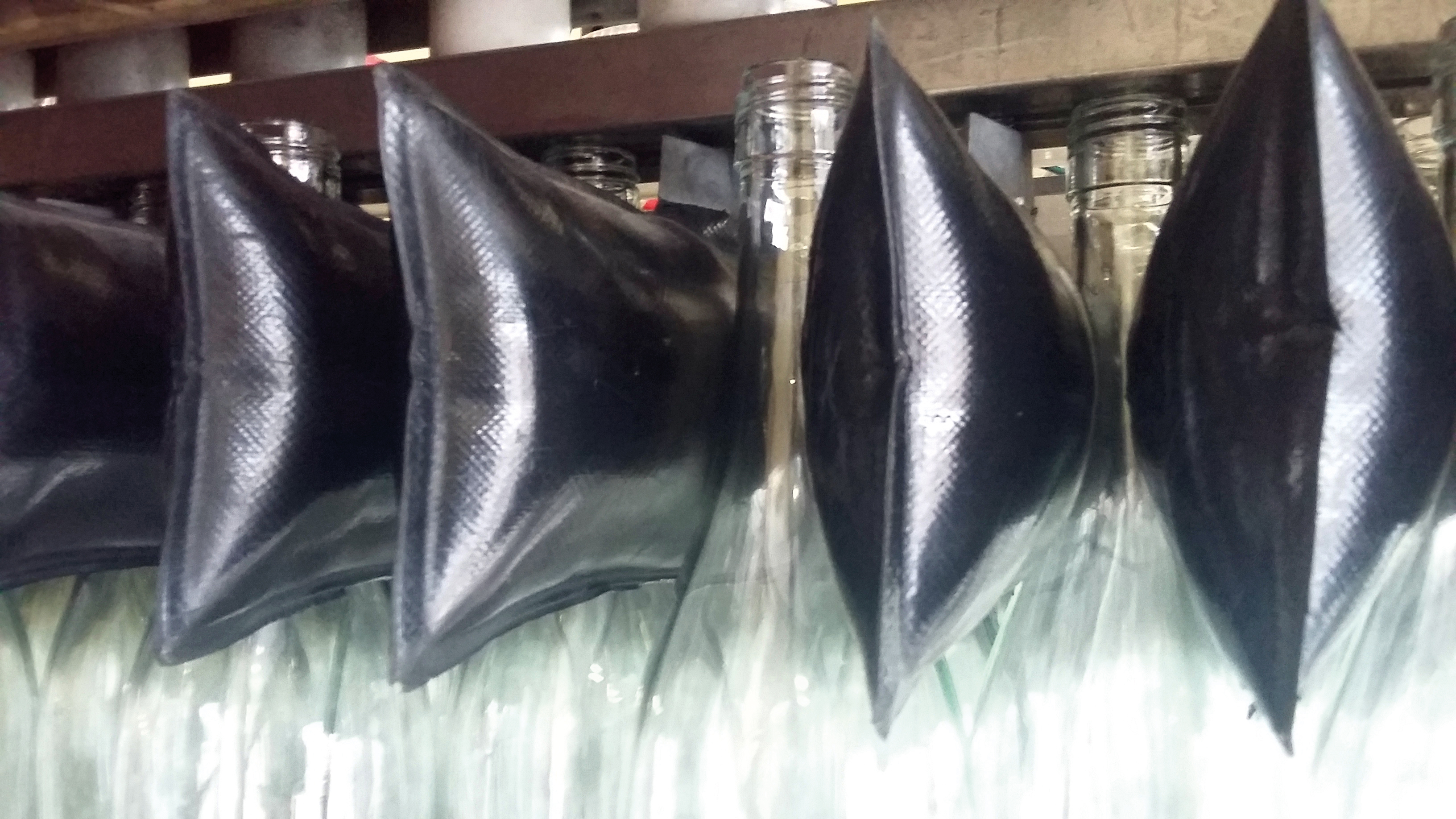

The standard lengths are 1320 mm and 1460 mm. Supplied with air, these inflatable rings are used to handle layers of bottles by pinching the bottle necks. Their wide contact surface and soft textile finish that comes as close as possible to the bottle collar avoids any tipping.
To meet quality requirements, the pneumatic tube grippers long neck are available with food-safe material coating on request. Depending on your installation, the grippers will be adapted with reinforcing, a dual air supply, a threaded ring height, etc.
For short-necked bottles, there is a range of pneumatic tube gripper short neck, or half pneumatic bottle gripper
Avantages
Handy to use
- Single air inlet
- Fast inflation
- Adaptable material
Efficiency
- Thin empty thickness
- Reduced size
- Uniformly distributed thrust
- Adapts to different bottle models
Reliability
- No mechanical parts
- No maintenance
- Long service life
Informations détaillées
- Material: NPVC coated fabric
- Manufacturing technique: hot vulcanization in a vacuum autoclave
- Standard lengths: 1320 and 1460 mm lengths
- Min./Max. diameter: 20 to 100 mm
- Inflation: air
- Temperature resistance: up to 50°C
- Max. inflation pressure: 1.2 bar
- Thickness: 7.5 to 8.5 mm
- Material options: food safe, cloth reinforcing, etc.
Informations techniques
| Ref. | Diameter (mm) | Height (mm) | Empty thickness (mm) |
|---|---|---|---|
| MC 20 | 20 | 36 | 7.5 |
| MC 27 | 27 | 48 | 7.5 |
| MC 33 | 33 | 55 | 7.5 |
| MC 37 | 37 | 63 | 7.5 |
| MC 47 | 47 | 79 | 7.5 |
| MC57 | 57 | 93 | 7.5 |
| MC 67 | 67 | 108 | 8.5 |
| MC 80 | 80 | 129 | 8.5 |
| MC 90 | 90 | 146 | 8.5 |
| MC 100 | 100 | 162 | 8.5 |
Vous ne trouvez pas vos dimensions
Notre bureau d'études composé des meilleurs chefs de projets et de desssinateurs sauront imaginer et créer un produit sur-mesure spécialement pour vous et votre projet unique.
