Half pneumatic bottle gripperHalf pneumatic bottle gripper

Half pneumatic bottle gripper - MDG

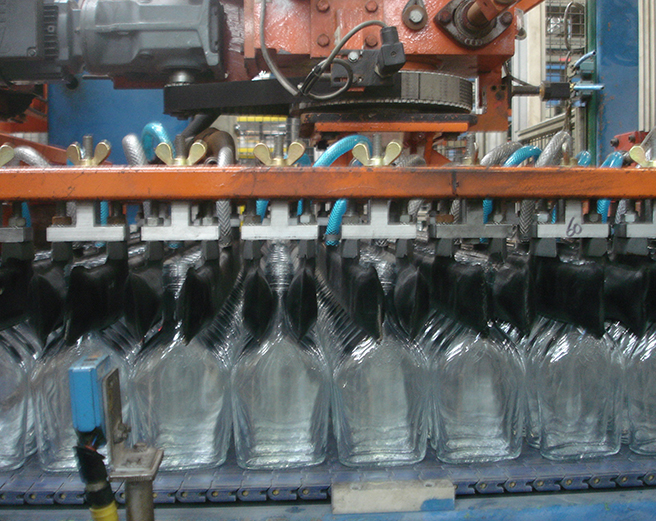

The range of MDG half pneumatic bottle gripper is dedicated to gripping rows of bottles, carafe type bottles or ones with a wide neck diameter. For this type of bottle, there is also the range of double pneumatic bottle gripper.

Two grippers are needed to grip a row of bottles. A link part is used to maintain the spacing between the two grippers. In addition, the half pneumatic bottle gripper offers an evenly distributed thrust.

Two lengths are available as standard : 1320 mm and 1460 mm. Other dimensions can be produced in line with the pallet layout diagram.

A food-safe coating can be added on request. Depending on your installation requirements, other options may be added to the inflatable rings such as reinforcing, a dual compressed air supply, a threaded rod height, etc.

Advantages

Handy to use

  • Single air inlet
  • Fast inflation
  • Adaptable material

Efficiency

  • Thin empty thickness
  • Reduced size
  • Uniformly distributed thrust
  • Adapts to different bottle models

Reliability

  • No mechanical parts
  • No maintenance
  • Long service life

Detailed information

  • Material: NPVC coated fabric
  • Manufacturing technique: hot vulcanization in a vacuum autoclave
  • Standard lengths: 1320 and 1460 mm lengths
  • Min./Max. diameter: 18 to 39 mm
  • Inflation: air
  • Temperature resistance: up to 50°C
  • Max. inflation pressure: 1.2 bar
  • Thickness: 13 mm
  • Material options: food safe, cloth reinforcing, etc.

Technical informations

Ref. Width at 0.5 bar (mm) Width at 1 bar (mm) Height (mm) Empty thickness (mm)
MDG 21D 18 21 49 13
MDG 21G 18 21 49 13
MDG 24D 21 24 58 13
MDG 24G 21 24 58 13
MDG 27D 24 27 70 13
MDG 27G 24 27 70 13
MDG 28D 25 28 77 13
MDG 28G 25 28 77 13
MDG 32D 29 32 91 13
MDG 32G 29 32 91 13
MDG 33D 30 33 100 13
MDG 33G 30 33 100 13
MDG 39D 36 39 121 13
MDG 39G 36 39 121 13

You can not find your dimensions

Our design department employs the best project leaders and designers and will be pleased to develop and create a tailor-made product specially for your unique project.

tailored

Composition / Advice

Care during use
Avoid any contact with surfaces that are too abrasive or have cutting edges. Carefully comply with the usage pressures stated on the product, refer to the installation manual.
Maintenance advice
There are no fixed maintenance intervals.
Storage advice
Store away from light, damp and temperature variations, in its original case.
Inflation advice
Service pressure is 1 bar max. 1.2 bar.

Standards / regulations

Guarantee
1 year against all manufacturing defects
Norms
ISO 9001, ISO 140001, ISO 45001
