Pneumatic tube gripper short neckPneumatic tube gripper short neck

Pneumatic tube gripper short neck - MCC

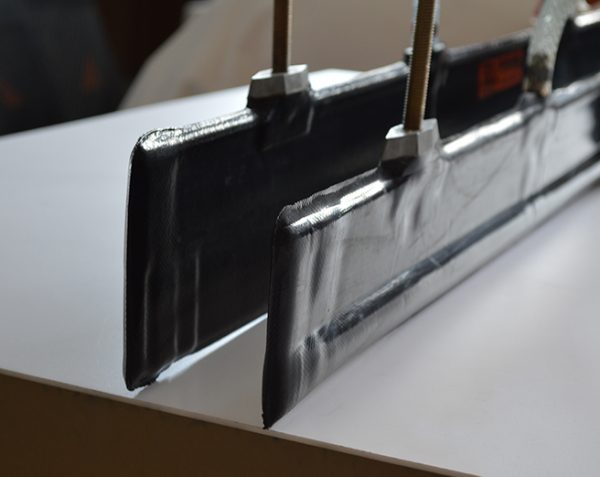

MCC pneumatic tube gripper short neck range is dedicated to short neck bottles for small quantities, like miniatures. For this type of bottle, there is also the range of half pneumatic bottle gripper. Their thinness when deflated means that they can be inserted easily between the rows of bottles.

Two lengths are available as standard : 1320 mm and 1460 mm. Other dimensions can be tailor-made to match the pallet loading plan.

Our range of pneumatic tube gripper short neck is manufactured in our workshops from NPVC coated fabric and assembled by hot vulcanization in autoclave.

Like for the other inflatable gripper ranges, a food-safe coating can be added on demand. Depending on your installation, the grippers will be adapted with reinforcing, a dual air supply, a threaded ring height, etc.

Advantages

Handy to use

  • Single air inlet
  • Fast inflation
  • Adaptable material

Efficiency

  • Thin empty thickness
  • Reduced size
  • Uniformly distributed thrust
  • Adapts to different bottle models

Reliability

  • No mechanical parts
  • No maintenance
  • Long service life

Detailed information

  • Material: NPVC coated fabric
  • Manufacturing technique: hot vulcanization in a vacuum autoclave
  • Standard lengths: 1320 and 1460 mm lengths
  • Min./Max. diameter: 8 to 35 mm
  • Inflation: air
  • Temperature resistance: up to 50°C
  • Max. inflation pressure: 1.2 bar
  • Thickness: 7 mm
  • Material options: food safe, cloth reinforcing, etc.

Technical informations

Ref. Diameter (mm) Height (mm) Empty thickness (mm)
MCC 8 8 51 7
MCC 10 10 54 7
MCC 12 12 57 7
MCC 14 14 60 7
MCC 16 16 83 7
MCC 18 18 92 7
MCC 20 20 96 7
MCC 22 22 98 7
MCC 25 25 100 7
MCC 27 27 105 7
MCC 29 29 106 7
MCC 35 35 114 7

You can not find your dimensions

Our design department employs the best project leaders and designers and will be pleased to develop and create a tailor-made product specially for your unique project.

tailored

Composition / Advice

Care during use
Avoid any contact with surfaces that are too abrasive or have cutting edges. Carefully comply with the usage pressures stated on the product, refer to the installation manual.
Maintenance advice
There are no fixed maintenance intervals.
Storage advice
Store away from light, damp and temperature variations, in its original case.
Inflation advice
Service pressure is 1 bar max. 1.2 bar.

Standards / regulations

Guarantee
1 year against all manufacturing defects
Norms
ISO 9001, ISO 140001, ISO 45001

Download

Fact Sheets / Business Guides
  • This field is for validation purposes and should be left unchanged.

Accessories

Air supply (dual or single)
Threaded rod (70/55 mm high or other)
Food quality
Reinforcing fabric
