Stack Bag- CPF

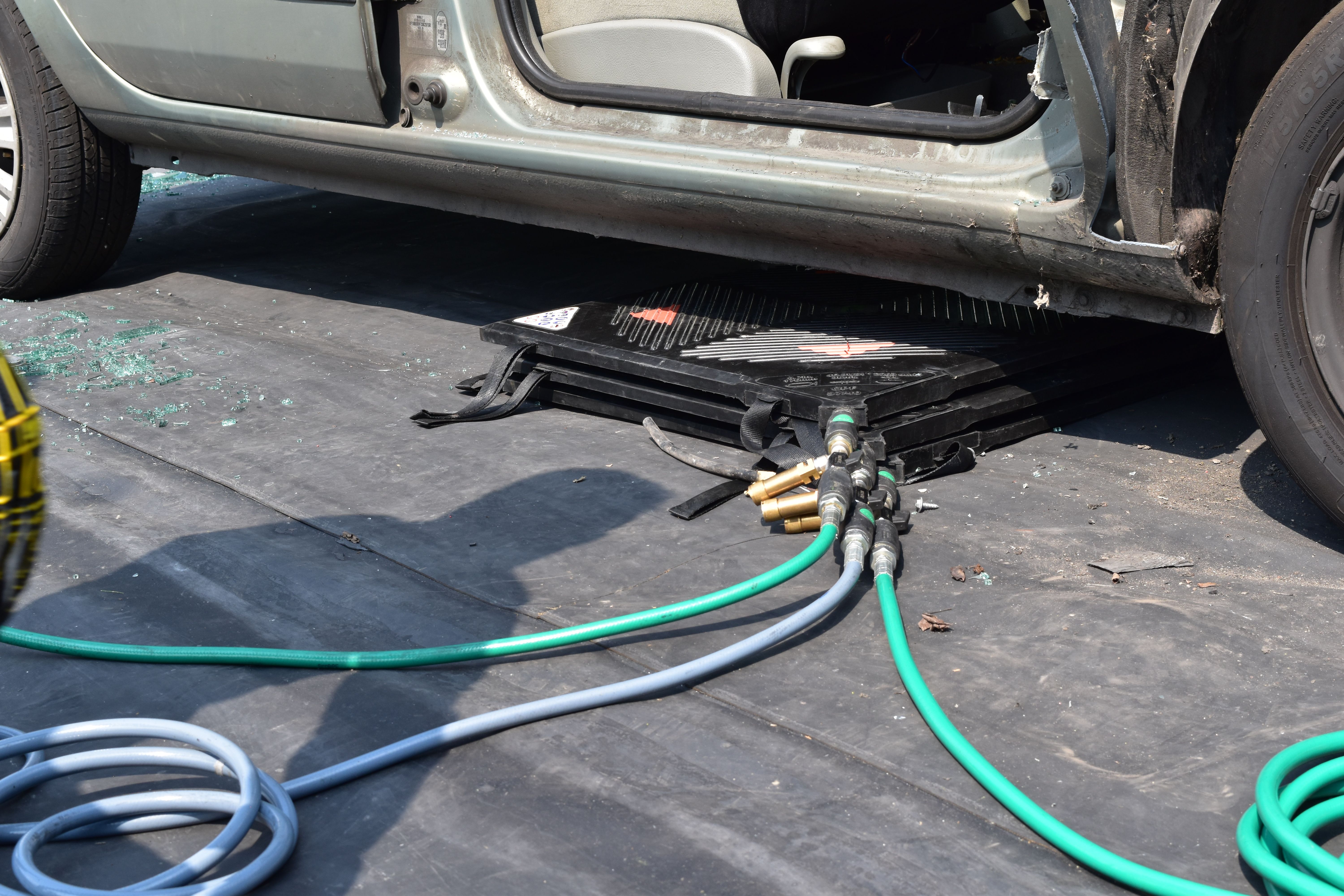

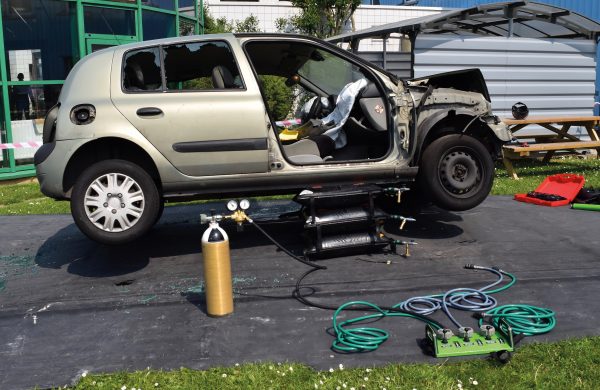

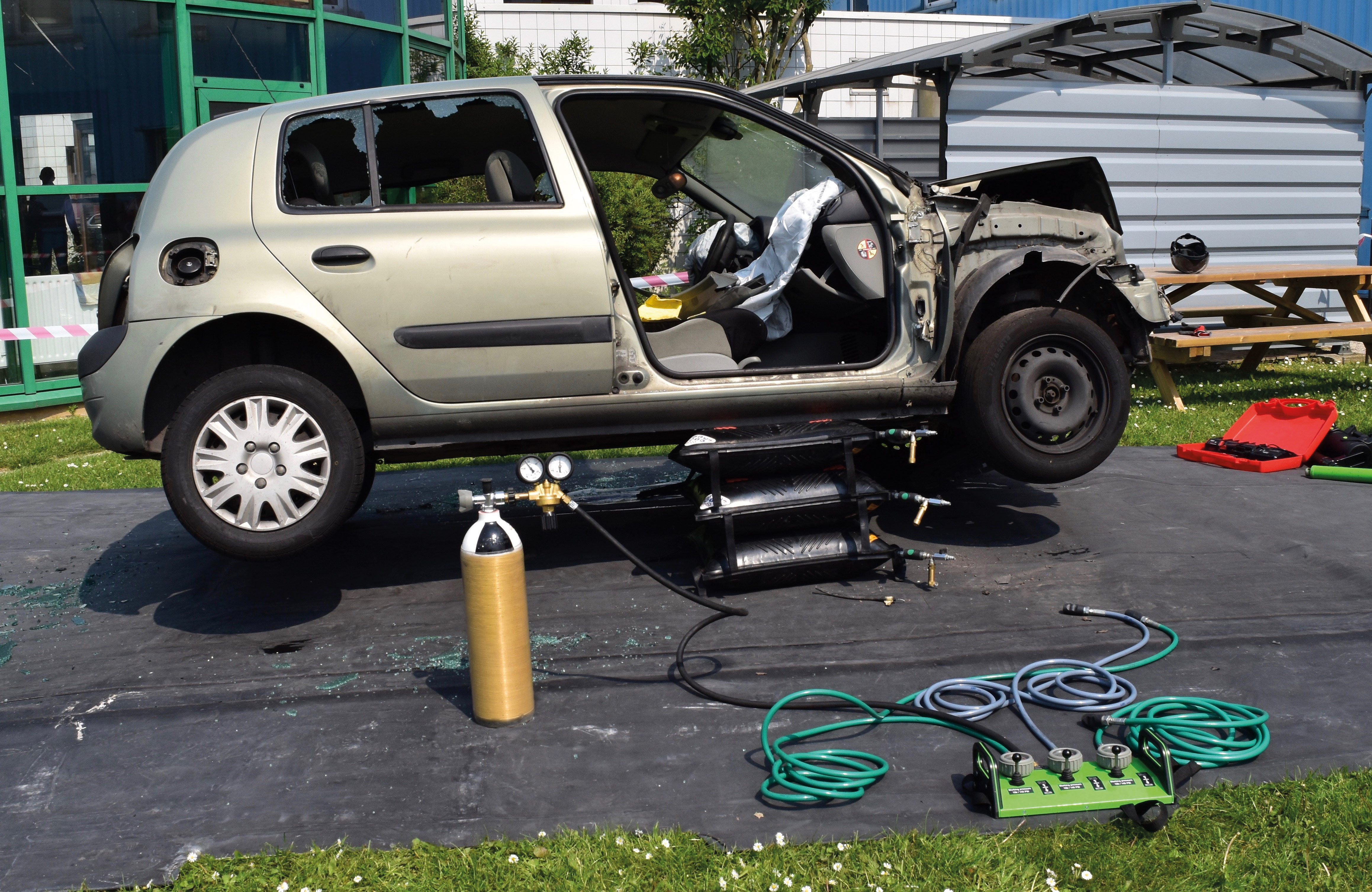

Unlike the other ranges (CLT and CBP), the stack bag has the particularity. This cushion has a flat, non-slip surface.  This guarantees the stability of the load. They can be stacked up to 3 cushions to reach a stable and secure lifting height of more than 500 mm. The airbag has a positioning mark to reinforce the safety and use of the product.

Moreover, thanks to its lightness and its low thickness when empty (25 mm), the use of this pneumatic lifting cushion is simple and fast. This stack bag can be used for civil protection, maintenance, industry etc.

The pressurization of the pneumatic lifting systems is controlled by a remote control box. Thus, the operator can work in complete safety. A valve limits the inflation pressure to 10 bar. We offer a wide range of accessories to meet all customer applications.

The range is composed of 5 models that can lift loads from 30 to 81 tons of thrust.



  • Stacking in 3s
  • Minimum 25 mm insertion height
  • Lifting height of up to 510 mm
  • Inflation pressure of 10 bar


  • Safety factor of 3
  • Perfectly flat surface
  • Anti-slip surface
  • Compliance with standard NF EN 13731


  • Light and easy to carry
  • Handling straps
  • Small size

Detailed information

  • Material: Aramid envelope, elastomer coated
  • Manufacturing technique: hot vulcanization under vacuum in autoclave
  • Dimensions: 560 x 560 mm to 920 x 920 mm
  • Inflation: air
  • Temperature resistance: -20 to 60°C
  • Max. inflation pressure: 10 bar
  • Test pressure: 12 bar
  • Max. thickness: 25 mm
  • Lifting travel: 170 mm
  • Safety factor: 3

Technical informations

Réf. Code Dimensions (mm) Thickness (mm) Weight (kg) Max. lifting capacity (T) Max. lifting height (mm) Air volume at 10 bar (L)
CPF 30/33 112929 560x560 25 11 31.4 170 32
CPF 37/40 111957 620x620 25 12 38.4 170 42
CPF 54/60 112930 750x750 25 18 56.3 170 68
CPF 68/75 112931 840x840 25 22 70.6 170 90
CPF 81/89 112932 920x920 25 26 84.6 170 112

You can not find your dimensions

Our design department employs the best project leaders and designers and will be pleased to develop and create a tailor-made product specially for your unique project.


Composition / Advice

Installation tips
Avoid any contact with surfaces that are excessively abrasive or have cutting edges. Stabilise and guide the load to lift.
Maintenance advice
There are no fixed maintenance intervals. Check after prolonged storage or after use.
Storage advice
Store away from light, damp and temperature variations, in its original case.
Inflation advice
Service pressure is 10 bar max.

Standards / regulations

1 year against all manufacturing defects
NF - EN 13731


Fact Sheets / Business Guides
  • This field is for validation purposes and should be left unchanged.


"Joystick" control unit with 1/2” outlets
"Pushbutton” control unit with 1/2” outlets
"Simplified” control unit with 1/2” outlets
Inflation hose, universal coupler, 5 or 10 m
"Geka" and quick couplers
Lifting cushions pads
Protections mats
