air lifting bagair lifting bag

Air lifting bag for extracting block

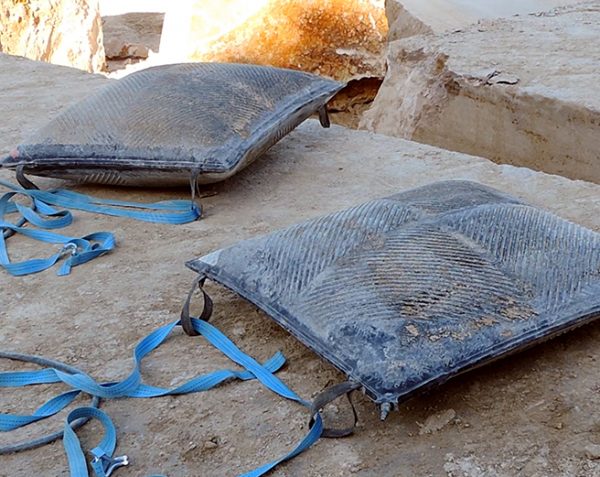

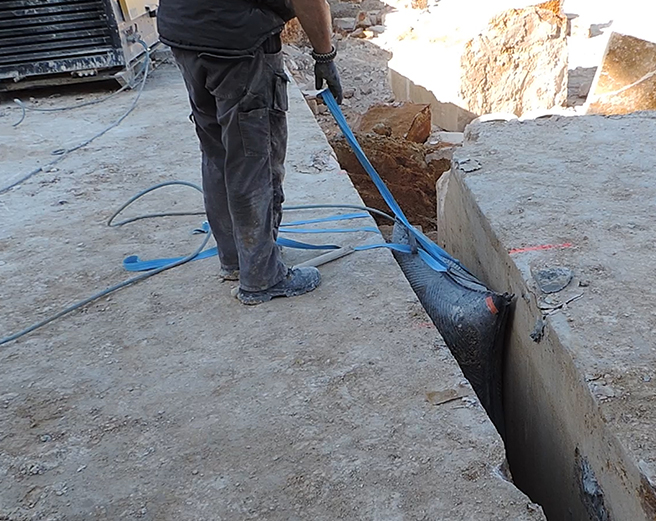

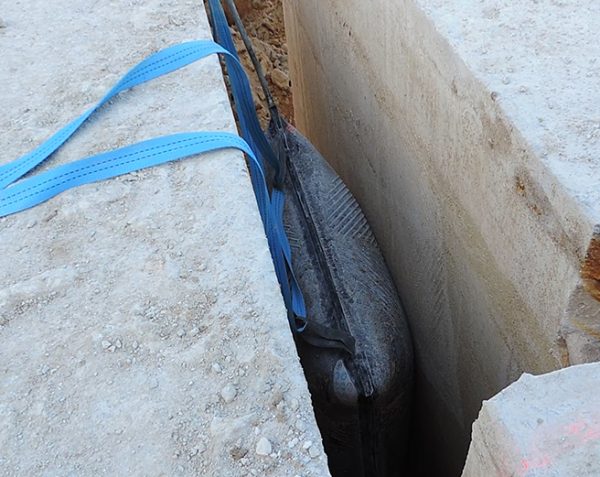

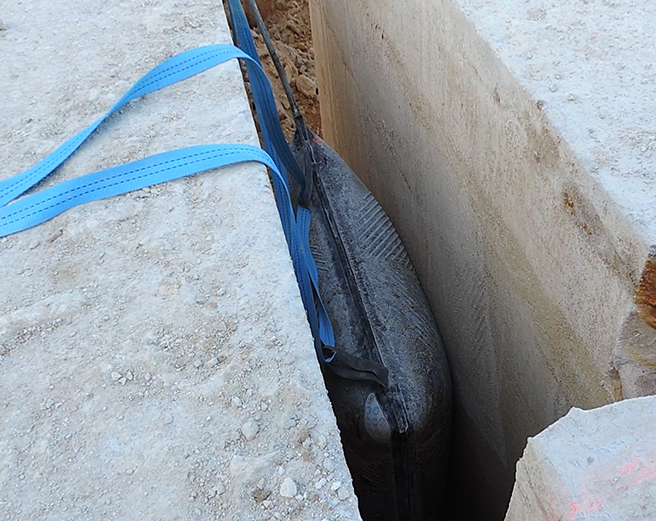

The Air lifting bag is part of the essential equipment dedicated to the extraction of blocks of marble, granite or any other stone. Indeed, its low thickness when empty allows it to be easily inserted in the sawing trenches. Several inflatable cushions are used simultaneously to spread the blocks of stone. They are maintained at a certain level by means of anchoring cables.

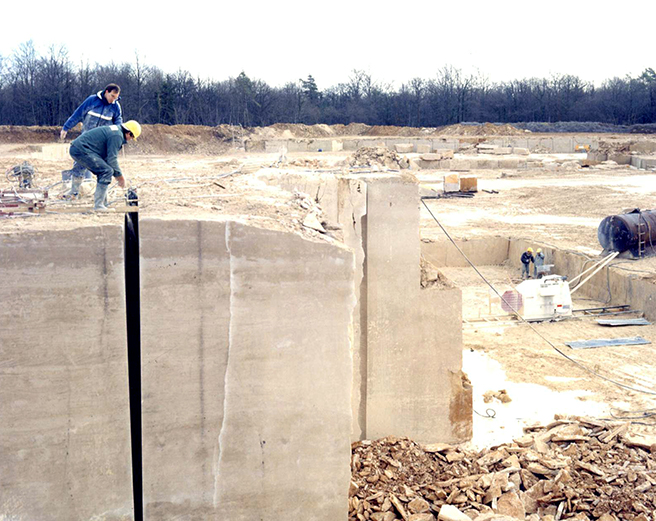

In addition, filled with air via a compressor, the quarry airbag spreads the rock evenly. This is followed by overlapping or shifting of the cushions until the stone blocks are tilted.

In the range of air lifting bags dedicated to the extraction of objects, you will also find the high pressure air lifting bag.



  • Reusable a number of times
  • Stackable
  • Easy to insert


  • Safety factor of 3 (depending on conditions of use)
  • Easy to use


  • Light and easy to carry
  • Handling straps
  • Small size

Detailed information

  • Material: NPVC coated cloth
  • Manufacturing technique: hot vulcanisation in a vacuum autoclave
  • Dimensions: 300 x 300 mm to 2800 x 2000 mm
  • Inflation: air
  • Temperature resistance: -20 to 60°C
  • Max. inflation pressure: 6 bar
  • Test pressure: 1 bar
  • Max. thickness: 7 mm
  • Lifting travel: 400 mm
  • Safety factor: 3 (depending on conditions of use)

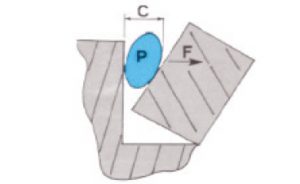

*schéma poussée coussins de carrière

Technical informations

Ref Useful dimensions (mm) Deflated thickness (mm) Max. travel (mm) *Force(T) for C =0mm P=6bar *Force(T) for C=100mm/P=3bar *Force(T) for C=400mm/P=1bar
CC160 1800 x 1500 8 750 160 70 11
CC190 2000 x 1600 8 800 190 79 20
CC240 2000 x 2000 8 1000 240 100 18
CC330 2800 x 2000 8 1000 330 145 29
CC6 300 x 300 8 150 5 0.5
CC16 600 x 400 8 200 14 3
CC17 500 x 500 8 250 15 3.5
CC60 1000 x 1000 8 500 60 22 1.3

You can not find your dimensions

Our design department employs the best project leaders and designers and will be pleased to develop and create a tailor-made product specially for your unique project.


Composition / Advice

Installation advice
Avoid any contact with surfaces that are excessively abrasive or have cutting edges. Stabilise and guide the load to lift.
Maintenance advice
There are no fixed maintenance intervals. Check after prolonged storage or after use.
Storage advice
Store away from light, damp and temperature variations, in its original case.
Inflation advice
Service pressure is 7 bar max. (depending on conditions of use).

Standards / regulations

1 year against all manufacturing defects
1.5 times service pressure


Fact Sheets / Business Guides
  • This field is for validation purposes and should be left unchanged.


"Joystick" control unit with 1/2” outlets
"Pushbutton” control unit with 1/2” outlets
"Simplified” control unit with 1/2” outlets
Inflation hose, universal coupler, 5 or 10 m
"Geka" and quick couplers
