Square/ circular/ rectangular inflatable jack
Inflatable jack, or lifting bag, is a pneumatic system made of elastomers or plastomers.
Filled with air, water or oil, these products are typically mounted in industrial automation systems to push, press, guide, clamp, lock, dampen, lift and handle.

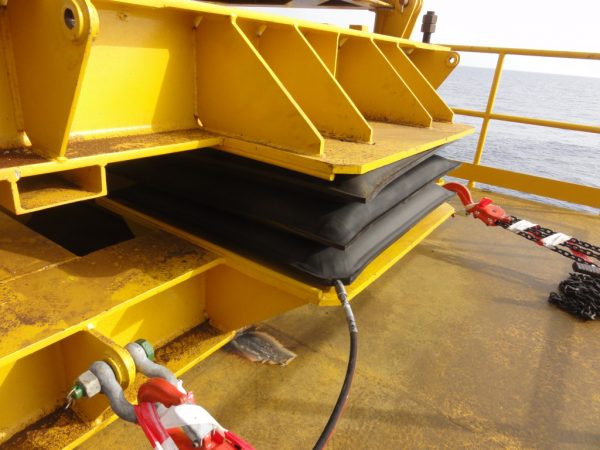

When deflated, the cylinders return to their original shape, and because of their small empty thickness, they can be easily integrated into tight spaces. For example, they can be integrated into presses, molds, conveyors, handling robots or lifting tables.
Like flange cylinders, they are available in double and triple bellows versions.
Depending on the available space and shape, flexible cylinders can have different shapes. There are annular, square, rectangular, circular and special shaped jacks.
We choose the material of our products so that it is suitable for its environment of use. We customize each lifting bag in terms of size, shape and material.
Our inflatable jack is the ideal solution for applications that require a high lifting force at a defined height. They are virtually maintenance-free.
Avantages
Handy to use
- Requires a single air inlet
- Fast inflation
- Adapts to complex geometric shapes
Efficiency
- Thin when deflated
- Uniformly distributed force
- Small dimensions
Handling
- No mechanical parts
- No maintenance
- Long service life
Informations détaillées
- Material: A variety of elastomer coated fabrics (NPVC )
- Manufacturing technique: Hot vulcanisation in a vacuum autoclave
- Flat standard dimensions: from 100 x 100 mm to 1000 x 1000 mm
- Custom dimensions: contact us
- Thickness at rest: 20 mm max. for one stage, 40 mm for two stages and 60 mm for three stages
- Shape: square
- Inflation: air, water or oil
- Temperature resistance: up to 80°C continuous
- Max. inflation pressure: 7 bar or more depending on conditions of use
- Lifting travel: depending on jack dimensions
- Possible options: a change in material or accessories as required.

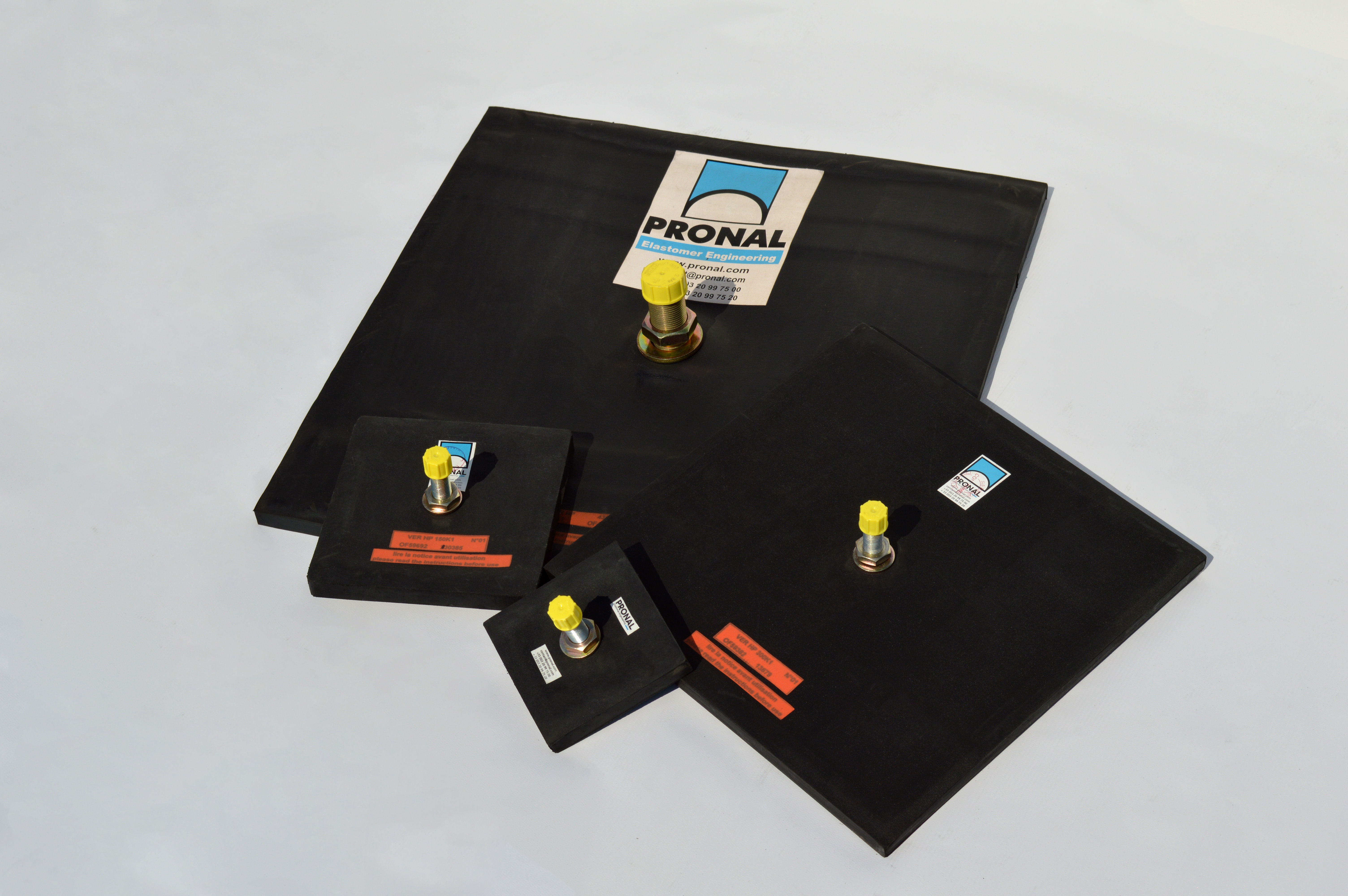

Pronal offers a standard square shaped range in sizes starting at 100 x 100 mm sides, with a thickness of approx. 20 mm for the single stage model (VER HP K1). Two other versions are offered with a double (VER HP K2) and triple (VER HP K3) bellows design.
Vous ne trouvez pas vos dimensions
Notre bureau d'études composé des meilleurs chefs de projets et de desssinateurs sauront imaginer et créer un produit sur-mesure spécialement pour vous et votre projet unique.
